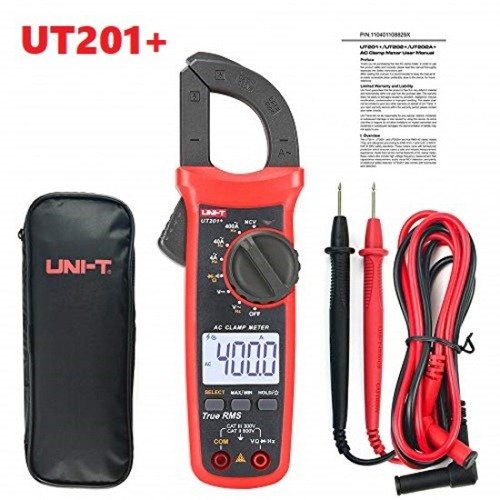

UNI-T UT201+ Digital Clamp Meter

UNI-T UT201+ Digital Clamp Meter DMM AC DC Auto Range Ture RMS Handheld Digital Multimeter Tester Volt Ohm Meter. UNI-T UT201+ is a True RMS clamp meter that measures AC and DC voltage, AC, resistance, and continuity, and also may be used for diode checking.

• • AC Current
  • AC/DC voltage
  • resistance
  • continuity test
  • diode test
  • True RMS measurement
  • Audiovisual NCV detection
  • Large LCD.
  • Full-featured false detection protection for up to 600 V energy surges; overvoltage and overcurrent alarm functions.
  • The power consumption of the meter is about 1.8 mA. The circuit has an automatic power-saving function. The consumption in the sleep state is <11 μA, which extends the battery life to 400 hours.
  • Low battery indication.
  • Automatic power after 15 of no-operation (function can be turned off).
  • Data hold function.
  • Max/Min mode.

Specifications:

• DC Voltage: 200mV/2V/20V/200V/600V, ±(0.8%+1)
• AC Voltage: 2V/20V/200V/600V, ±(1.2%+5)
• AC Current: 2A/20A/200A/400A, ±(1.5%+5)
• Resistance: 200W/2kW/20kW/200kW/2MW/20MW, ±(1%+2)
• Frequency:10Hz~10MHz,±(0.5%+3)

General Characteristics:

• Power: 1.5V Batteries (R03) X 2 (Not Included)
• LCD Size: 35.6 X 18mm
• Product Color: Red And Grey Product
• Net Weight: 220g
• Product Size: 210 X 75.6 X 30mm
• Standard Accessories: Test Lead, Manual
