UNI-T Digital Multimeter UT136B+ AC-DC Resistance Frequency Auto Range Meter
- Brand: UNI-T
- SKU: 23966
Roll over image to zoom in
Click to open expanded view
৳ 3,000.00
In stock

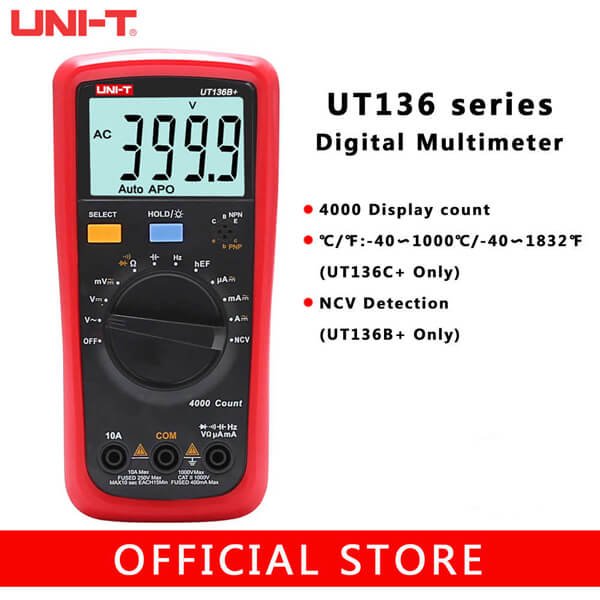

- Digital Multimeter
- AC DC Resistance Frequency Auto Range Meter
- Model: UT136B
- Brand: UNI-T
- 1 Pcs Per Box
- The new generation of UT136B series digital multimeter has an innovative industrial design that ensures that the product can withstand a drop of 2 meters in height.
- UT136 series is designed to work safely in CAT II1000V/CAT III 600V environment.
- This series is suitable for civil/commercial use such as HVAC technicians and electricians.
Features:
- Measures up to 1000V and 10A AC/DC voltage and current
- Equipped with 3mm protective sleeve; 2 meters drop proof
- Large LCD dual display; up to 4 times/s refresh rate
- Full range protection: can endure up to 1kV over-voltage shock; overload alarm
- Quick response rate
- Low power consumption and auto power-saving function; long battery service life (>500hrs)
Specifications of Digital Multimeter UT136B:
- DC voltage (V): 400mV/4V/40V/400V/1000V ±(0.5%+2)
- AC voltage (V): 400mV/4V/40V/400V/1000V ±(0.7%+3)
- DC current (A): 400uA/4000uA/40mA/400mA/4A/10A±(1.0% 3)
- AC current (A): 400uA/4000uA/40mA/400mA/4A/10A±(1.5% 5)
- Resistance (Ω): 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ±(0.8% 2)
- Capacitance (F):4nF/40nF/400nF/4μF/40μF/400μF/4mF/40mF ±10%
- Frequency: 400Hz ~ 40MHz ±(0.1% 4)
- Max display: 3999
- Auto range:√
- NCV: √
- Diode/Transistor:√
- Backlight: √
- Overload alarm:√
- Low battery indication: √
- Auto power off: √
- LCD size: 60mm x 38mm
- Protective: sleeve3.0mm√
- Safety rating: CAT II 1000V√
Package Includes
► 1 Pcs UNI-T UT136B
► 1 Pair Test Leads Probe
► 1 Pcs English Manual
