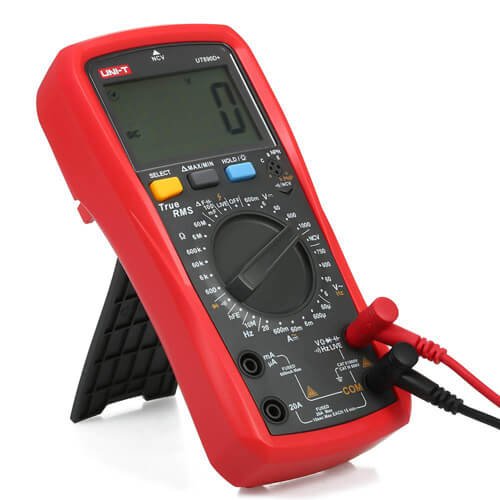

The UT890D+ Digital Multimeter 6000-count true RMS digital multimeter is designed with a large LCD. The maximum measurable capacitance is 100mF, with a fast response time of less than 12s. The NCV and continuity measurement have acousto-optic indications. UT890D+ has a LIVE function for distinguishing between live and neutral wires. In addition, it is equipped with automatic fuse blown detection and high voltage protection.

Features of the Digital Multimeter

Manual range/True RMS
Data hold/REL
Audible/visual alarm (NCV/continuity)
Current (AC/DC) mode memory
Low battery indication: ≤2.5V
NCV/hFE/Max/Min
Diode test/Continuity test
High voltage false detection: 1000Vrms
Over-current alarm: ≥20A
Auto power off/LCD backlight

Specification	Range	UT890D+
DC Voltage	600mV/6V/60V/600V/1000V	±(0.5%+2)
AC Voltage	6V/60V/600V/750V	±(0.8%+3)
ACV Frequency	10Hz～10kHz	±（0.1%+5)
DC Current	60uA//600uA/6mA/60mA/600mA/20A	±(0.8%+8)
AC Current	60uA/600uA/6mA/60mA/600mA/20A	±(1%+12)
Resistance	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ	±(0.8%+3)
Capacitor	6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF/100.0mF	±(3%+10)
Frequency	9.999Hz～9.999MHz	±(1.0%+5)
Features
Display Count		6000
Manual Range		√
NCV		√
hFE		√
Diode Test		√
Continuity Test		√
Live		√
True RMS		√
Fuse blowing alarm		√
Acousto-optic indication(NCV/continuity)		√
High voltage false detection	1000Vrms	√
Current (AC/DC) mode memory		√
Over-current alarm	≥20A	√
Low Battery Indication	≤2.5V	√
Data Hold		√
REL		√
Max/Min	V 、A	√
Auto Power Off	15Min	√
Backlight	30s	√
Operation Temperature	0℃～40℃
Safety	CAT Ⅱ 1000V/CAT III 600V
General Characteristics
Power	1.5V x 2
Product Color	Red and Gray
Product Net Weight	346g
Product Size	183mm x 88mm x 56mm
Standard Individual Packing	Gift Box, Manual
Standard Quantity Per Carton	40pcs
Standard carton measurement	690mm x 450mm x 340mm
Standard carton gross weight	23Kg

General Applications of UT890D+ Digital Multimeter:

1. Electrical switchboards 2. HVAC systems 3. Electrical circuit faults detection 4. Installation or maintenance of electronics/factory equipment 5. Electronics component development, circuit board design 6. Users who need to distinguish between neutral/live wire frequently.

UNI-T

UNI-T UT890D+ Digital Multimeter

৳ 2,500.00

Digital Professional Multimeter
Model: UT890D+
AC & DC BOTH
Brand: UNI-T
Made in China

SKU: 62397 Category: Multimeter & Clamp Meter Tags: Digital Multimeters, Multimeters

Description

Specification	Range	UT890D+
DC Voltage	600mV/6V/60V/600V/1000V	±(0.5%+2)
AC Voltage	6V/60V/600V/750V	±(0.8%+3)
ACV Frequency	10Hz～10kHz	±（0.1%+5)
DC Current	60uA//600uA/6mA/60mA/600mA/20A	±(0.8%+8)
AC Current	60uA/600uA/6mA/60mA/600mA/20A	±(1%+12)
Resistance	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ	±(0.8%+3)
Capacitor	6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF/100.0mF	±(3%+10)
Frequency	9.999Hz～9.999MHz	±(1.0%+5)
Features
Display Count		6000
Manual Range		√
NCV		√
hFE		√
Diode Test		√
Continuity Test		√
Live		√
True RMS		√
Fuse blowing alarm		√
Acousto-optic indication(NCV/continuity)		√
High voltage false detection	1000Vrms	√
Current (AC/DC) mode memory		√
Over-current alarm	≥20A	√
Low Battery Indication	≤2.5V	√
Data Hold		√
REL		√
Max/Min	V 、A	√
Auto Power Off	15Min	√
Backlight	30s	√
Operation Temperature	0℃～40℃
Safety	CAT Ⅱ 1000V/CAT III 600V
General Characteristics
Power	1.5V x 2
Product Color	Red and Gray
Product Net Weight	346g
Product Size	183mm x 88mm x 56mm
Standard Individual Packing	Gift Box, Manual
Standard Quantity Per Carton	40pcs
Standard carton measurement	690mm x 450mm x 340mm
Standard carton gross weight	23Kg
