UNI-T UT890C True RMS Multimeter LCD Digital Display Electrical Tool Ammeter

৳ 2,500.00

In stock

  • Digital True RMS Multimeter
  • Model: UT890C
  • Brand: UNI-T
  • Made in China

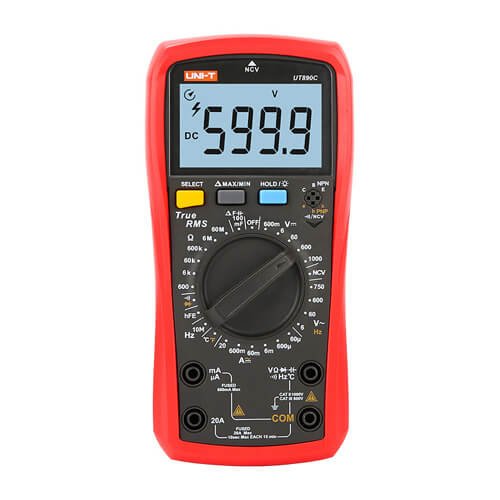

UNI-T UT890C RMS Digital Multimeter With Temperature Tester

The UT890 series 6000-count true RMS digital multimeters are designed with a large LCD display. The maximum measurable capacitance is 100mF, with a fast response time of less than 12s. The NCV and continuity measurement have acousto-optic indications. UT890C or UT890D has a LIVE function for distinguishing between live and neutral wires. In addition, it is equipped with automatic fuse blown detection and high voltage protection.

Models in UT890 Series: UT890C, UT890D

  • Features of UT890C True RMS Digital Multimeter

  • Manual range/True RMS
  • Data hold/REL
  • Audible/visual alarm (NCV/continuity)
  • Current (AC/DC) mode memory
  • Low battery indication: ≤2.5V
  • NCV/hFE/Max/Min
  • Diode test/Continuity test
  • High voltage false detection: 1000Vrms
  • Over-current alarm: ≥20A
  • Auto power off/LCD backlight

Specifications of UT890 Series True RMS Digital Multimeters

Specification Range UT890C UT890D
DC Voltage 600mV/6V/60V/600V/1000V ±(0.5% 2) ±(0.5% 2)
AC Voltage 6V/60V/600V/750V ±(0.8% 3) ±(0.8% 3)
ACV Frequency 10Hz~10kHz ±(0.1% 5) ±(0.1% 5)
DC Current 60uA//600uA/6mA/60mA/600mA/20A ±(0.8% 8) ±(0.8% 8)
AC Current 60uA/600uA/6mA/60mA/600mA/20A ±(1% 12) ±(1% 12)
Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8% 3) ±(0.8% 3)
Capacitor 6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/
600.0μF/6.000mF/60.00mF/100.0mF
±(3% 10) ±(3% 10)
Frequency 9.999Hz~9.999MHz ±(1.0% 5) ±(1.0% 5)
Temperatue –40℃~1000℃/–40°F~1832°F ±(1.5% 5)
Features
Display Count 6000 6000
Manual Range
NCV
hFE
Diode Test
Continuity Test
Live
True RMS
Fuse blowing alarm
Acousto-optic indication(NCV/continuity)
High voltage false detection 1000Vrms
Current (AC/DC) mode memory
Over-current alarm ≥20A
Low Battery Indication ≤2.5V
Data Hold
REL
Max/Min V 、A
Auto  Power Off 15Min
Backlight The 30s
Operation Temperature 0℃~40℃
Safety CAT II 1000V/CAT III 600V
General Characteristics
Power 1.5V x 2
Product Color Red and Gray
Product Net Weight 346g
Product Size 183mm x 88mm x 56mm
Standard Individual Packing Gift Box, Manual
Standard Quantity Per Carton 40pcs
Standard carton measurement 690mm x 450mm x 340mm
Standard carton gross weight 23Kg



Applications of UT890 Series True RMS Digital Multimeters

  • Live and nature wires identification
  • Voltage measurement
  • Temperature measurement
  • NCV measurement
  • and many more.
