Description

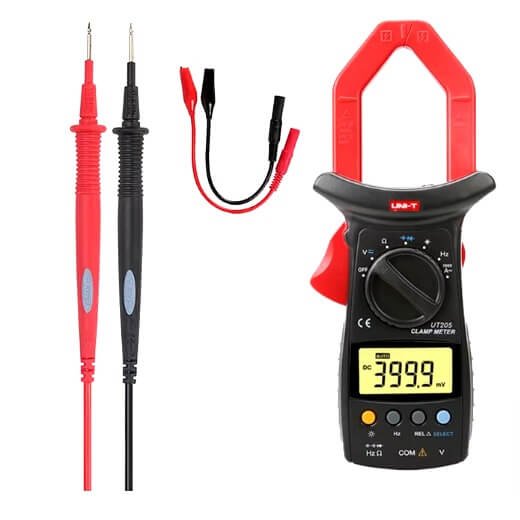

UT205 is a low-power, stable, safe, and reliable 4000-count AC digital clamp meter. The full range overload protection circuit and unique design make it a special electrical meter with superior performance.
Applications:
The meter is an ideal tool for maintenance in smelting, manufacturing, petroleum, electric power, chemical, and other industries.
| Specifications | Range | UT205 |
| AC Current (A) | 400A/1000A | ±(1.5% 5) |
| 400A/1000A≥800A: | ±(3% 5) | |
| AC Voltage (V) | 4V/40V/400V/600V | ±(1.2% 5) |
| DC Voltage (V) | 400mV/4V/40V/400V/600V | ±(0.8% 1) |
| Resistance (Ω) | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(1% 2) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1% 3) |
| Features | ||
| Display count | 3999 | |
| Auto range | √ | |
| Jaw opening | 40mm | |
| Duty cycle | 0.1%~99.9% | √ |
| Diode test | √ | |
| Auto power off | √ | |
| Continuity buzzer | √ | |
| Low battery indication | √ | |
| Data hold | √ | |
| LCD backlight | √ | |
| Flashlight | √ | |
| Full icon display | √ | |
| Input impedance for DCV | ≥10MΩ | √ |
| General Characteristics | ||
| Power | 9V battery (6F22) | |
| LCD size | 56.4mm × 37mm | |
| Product Color | Red and grey | |
| Product net weight | 522g | |
| Product size | 106.4mm × 52mm × 257mm | |
| Standard accessories | Battery, test leads, alligator clips | |
| standard individual packing | Toolbox, gift box | |
| Standard quantity per carton | 20pcs | |
| Standard carton measurement | 598mm × 375mm × 485mm | |
| Standard carton gross weight | 27.3kg | |
