UNI-T UT61E+ 1000V True RMS Digital Multimeter Auto Range Meter

৳ 9,500.00

In stock

  • Digital Multimeter Auto Range 1000V True RMS
  • Brand: UNI-T
  • Model: UT61E
  • Made In China
  • Condition: Original Brand New

UNI-T UT61E 1000V True RMS Digital Multimeter Auto Range Meter

UT61E 1000V True RMS Digital MultimeterUT61 series are reliable true RMS digital multimeters with display counts of 6000 (UT61B /D ) and 22,000 (UT61E ). It can measure up to 1000V AC/DC.
Equipped with audible and visible alarms, this series can provide warnings, especially when measuring high voltage/current and temperature.

Features:

  • True RMS
  • Data hold/backlight
  • Max/Min/Relative mode
  • USB communication
  • Input protection
  • Diode/continuity test
  • NCV (audible/visual alarm)
  • LPF ACV
  • ACV DCV
  • Transistor hFE
  • Peak Hold



Specifications

  • Safety ratings CAT III 1000V/CAT IV 600V
  • AC voltage (V) 1000V ±(0.8%+10)
  • DC voltage (V) 1000V ±(0.05%+5)
  • AC (A) 20A ±(0.8%+10)
  • DC (A) 20A ±(0.5%+10)
  • Resistance (Ω) 220MΩ ±(0.5%+10)
  • Capacitance (F) 220mF ±(3%+5)
  • Frequency (Hz) 220MHz ±(0.01%+5)
  • Duty cycle (%) 0.1%~99.9% ±(2%+5)
  • Display count   22000
  • Bandwidth (Hz)   40~10kHz
  • LPF ACV   √
  • ACV DCV   √
  • Transistor hFE   √
  • Peak Hold   √
  • Analog bar   46
  • General Characteristics
  • Power 1.5V battery (R03) x 4

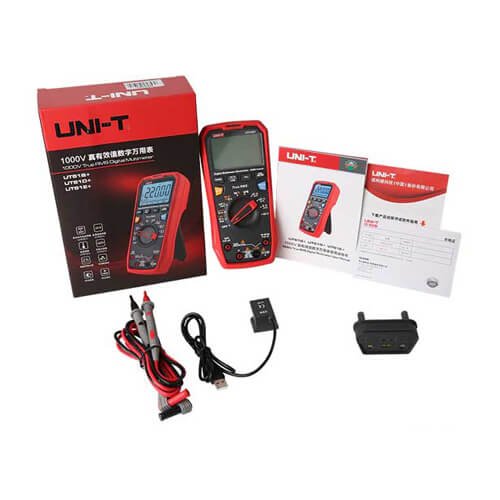

Package Includes

► 1 Pcs UNI-T UT61E 1000V True RMS Digital Multimeter
► 1 Pair Test Leads Probe
► 1 Pcs USB cable
► 1 Pcs Temperature Multi-purpose Socket
► 1 Pcs English Manual
