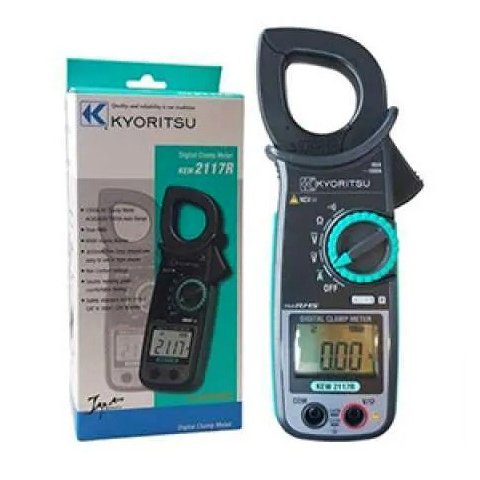

Kyoritsu Brand Digital AC Clamp Meter KEW2117R is a perfect portable clamp meter for electric and electronics professional.

Fully Safety jaw
The ergonomic over-molded body gives convenient one-hand operation
Large easy-to-read display with 0.01A resolution
Accurate reading with True RMS
60/600/1000A auto-ranging
Long battery life
Safety Standard
IEC 61010-1 CAT IV 300V / CAT III 600V
Click to Know More

Specifications of Kyoritsu Digital AC Clamp Meter KEW2117R:

AC A	60.00/600.0/1000A (Auto-ranging) ±1.5%rdg±4dgt [45 – 65Hz] ±2.0%rdg±5dgt [40 – 1kHz]
AC V	60.00/600.0V (Auto-ranging) ±1.0%rdg±2dgt [45 – 65Hz] (600V) ±1.5%rdg±4dgt [40 – 1kHz] (60/600V)
DC V	60.00/600.0V (Auto-ranging) ±1.0%rdg±3dgt (60V) ±1.2%rdg±3dgt (600V)
Ω	600.0Ω/6.000/60.00/600.0kΩ (Auto-ranging) ±1.0%rdg±5dgt (600Ω) ±2.0%rdg±3dgt (6/60/600kΩ)
Continuity buzzer	600Ω(Buzzer sounds below 90Ω)
Conductor size	Ø33mm max.
Applicable standards	IEC 61010-1 CAT IV 300V, CAT III 600V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033, IEC 61326-2-2(EMC), IEC 60529 IP 40, EN50581(RoHS)
Power source	R03/LR03 (AAA) (1.5V) × 2
Continuous measuring time	Approx.170 hours (When R3 is used)(NCV_LED:off) (Auto power save approx. 10 minutes)
Dimensions	204(L) × 81(W) × 36(D)mm
Weight	220g Approx. (including batteries)
Included Accessories	7066A (Test leads) 9079 (Carrying case) R03 (AAA) × 2, Instruction Manual

Kyoritsu

Kyoritsu Digital AC Clamp Meter KEW2117R

৳ 9,500.00

Digital AC Clamp Meter
Model: KEW2117R
Brand: Kyoritsu
Made in Japan

Available on backorder

SKU: 83478 Category: Multimeter & Clamp Meter Tags: AC Clamp Meters, Clamp Meters

Description

AC A	60.00/600.0/1000A (Auto-ranging) ±1.5%rdg±4dgt [45 – 65Hz] ±2.0%rdg±5dgt [40 – 1kHz]
AC V	60.00/600.0V (Auto-ranging) ±1.0%rdg±2dgt [45 – 65Hz] (600V) ±1.5%rdg±4dgt [40 – 1kHz] (60/600V)
DC V	60.00/600.0V (Auto-ranging) ±1.0%rdg±3dgt (60V) ±1.2%rdg±3dgt (600V)
Ω	600.0Ω/6.000/60.00/600.0kΩ (Auto-ranging) ±1.0%rdg±5dgt (600Ω) ±2.0%rdg±3dgt (6/60/600kΩ)
Continuity buzzer	600Ω(Buzzer sounds below 90Ω)
Conductor size	Ø33mm max.
Applicable standards	IEC 61010-1 CAT IV 300V, CAT III 600V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033, IEC 61326-2-2(EMC), IEC 60529 IP 40, EN50581(RoHS)
Power source	R03/LR03 (AAA) (1.5V) × 2
Continuous measuring time	Approx.170 hours (When R3 is used)(NCV_LED:off) (Auto power save approx. 10 minutes)
Dimensions	204(L) × 81(W) × 36(D)mm
Weight	220g Approx. (including batteries)
Included Accessories	7066A (Test leads) 9079 (Carrying case) R03 (AAA) × 2, Instruction Manual
