Description

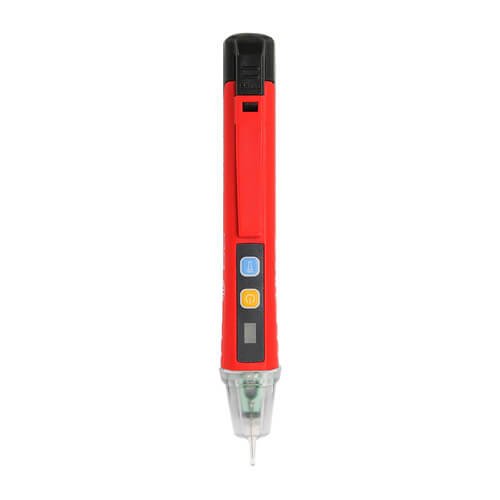

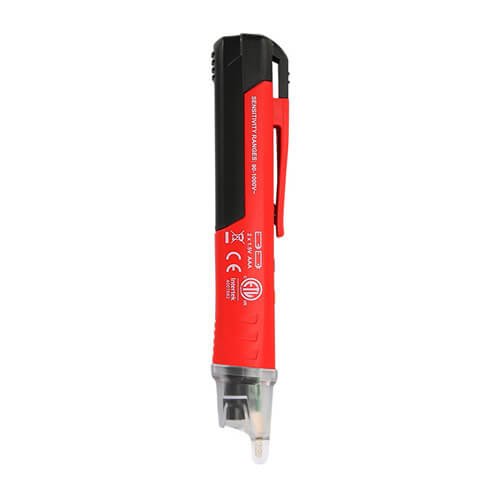

UNI-T UT12D-US AC Voltage Detector
UT12 series non-contact AC voltage detectors are widely used in the maintenance of lowvoltage
equipments such as conductors, cables, sockets, and other electrical/electronicsinstruments.
It is a very handy tool for electricians.
Features:
- Auto power off
- Buzzer
- LED indication
- AC voltage detection
- High/Low voltage-mode
Applications:
Low voltage mode: Low-voltage motor (<90V), audio systems, arc welding machines, underground mining lighting, cables with thick insulation layer, and other weak electromagnetic AC signals.
High voltage mode: Urban electric supply and three-phase
systems (90~1000V). For example, power distribution units,
electrical panels, and electrical appliances.
| Specification | |
| Model | UT12D-US |
| AC voltage (Low) | 24V~1000V |
| AC voltage (High) | 90V~1000V |
| Frequency range | 50/60Hz |
| Built-in flashlight | √ |
| ※Audible (buzzer) and visual (LED) indication | √ |
| Buzzer | √ |
| LED indication | √ |
| Auto power off | √ |
| Low voltage indication | √ |
| Drop test | 1m |
| General Characteristics | |
| Power | 1.5V battery (R03) x 2 |
| Product Color | Red and grey |
| Product net weight | 50g |
| Product size | 150mm x 18 mm x 23mm |
| Standard accessories | Batteries |
| Standard individual packing | Blister, English manual |
| Standard quantity per carton | 40pcs |
| Standard carton measurement | 350mm x 245 mm x 210mm |
| Standard carton gross weight | About 3.6kg |
