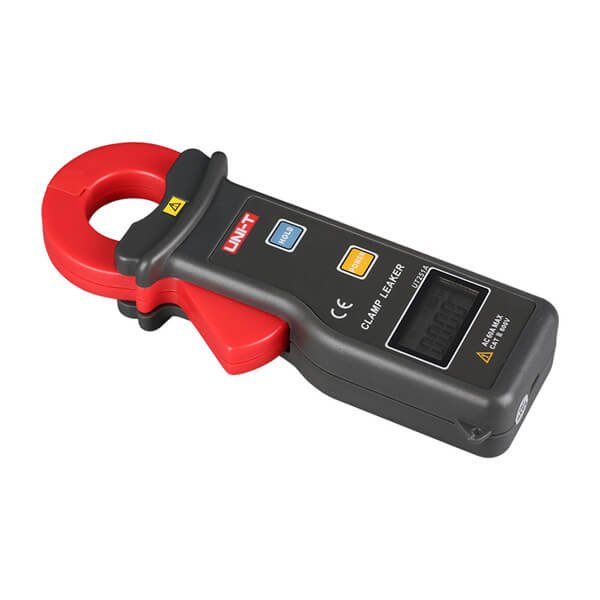

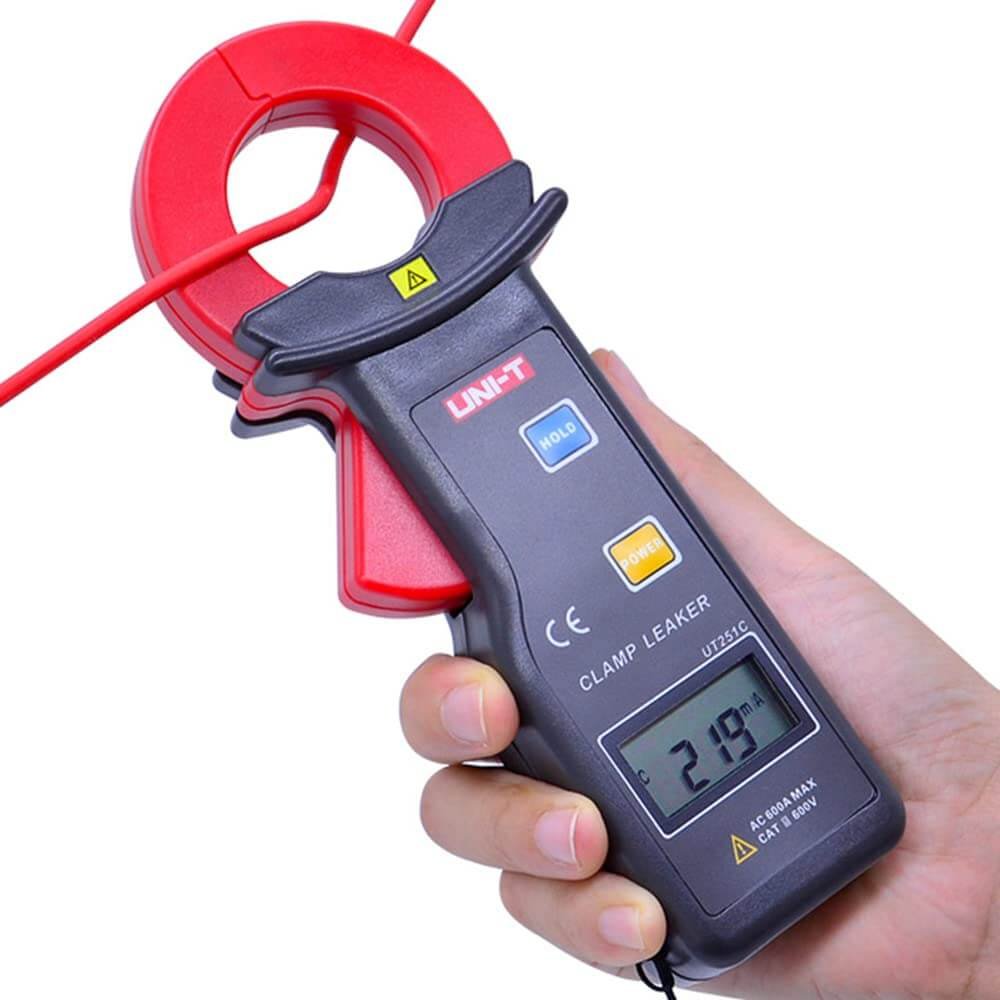

Name: UNI-T UT251C High Sensitivity Leakage Current Clamp Meter
Brand: UNI-T
SKU: 614723
Availability: InStock

UT251 series high-accuracy high sensitivity leakage current clamp meters are designed for testing AC leakage current. These high-resolution meters are great for applications such as checking leakage current for motors, home appliances, and other electrical equipment up to 600A.

Applications:

Checking leakage current for motor, home appliances, and other electrical equipment up to 600A.
4-digit LCD digital display, 10000 display count
Auto range, 2/s sampling rate
Peaks hold
Store 99 sets of data
RS-232 interface
Data hold
Auto power off
Overload indication, low battery indication

Specifications	Range	UT251C
Leakage current (A)	0.001mA～60A	±(1.5% 5)
	60A～199.9A	±(2% 5)
	200A～300A	±(3% 5)
	300A～600A	±(4% 5)
	Voltage (Freq.) 0V~600V (50Hz/60Hz)	√
	Resolution	1mA
Features
Display	4 digits LCD	√
Clamp size		35mm x 40mm
Auto range		√
RS-232		√
Data storage		99
Peak/Data hold		√
Overload protection	OL	√
Auto power off	5 minutes	√
Low battery indication		≤7.2V
Over-range display	OL	√
Test mode	Clamp CT, integral mode	√
General Characterisitics
Power	9V battery (6F22)
Display	32mm x 15mm
Product color	Red and grey
Product net weight	120g
Product size	175mm x 70mm x 38mm
Standard accessories	Battery, RS-232 interface cable, PC software CD
Standard individual packing	Gift box, carrying bag, English manual, toolbox
Standard quantity per carton	6pcs
Standard carton measurement	385mm x 290mm x 115mm
Standard carton gross weight	3.3kg
