UNI-T UT204+ Digital Clamp Meter AC/DC 600A

৳ 5,300.00

In stock

  • Digital AC/DC Clamp Meter
  • Model: UT204+
  • Brand: UNI-T
  • Made in China

UNI-T UT204+ Digital Clamp Meter AC/DC 600A Current Tester True RMS Auto Range Temperature Measurement High Precision Multimeter.

UT204+ digital clamp meter is designed according to EN61010-2010 CAT II 600V/CAT III 300V, featuring overload protection, high reliability, high safety, and high accuracy. These meters can be used to measure high-voltage frequency, temperature, AC/DC current, etc.

SpecificationsRangeUT204+
AC (A)600A±(2.5%+5)
DC (A)600A±(2.5%+5)
AC voltage (V)600V±(0.8%+5)
AC voltage frequency(Hz)10Hz~60kHz±(0.5%+2)
DC voltage (A)600V±(0.5%+2)
Resistance (Ω)60MΩ±(0.8%+2)
Capacitance (F)60mF±(4%+5)
Temperature (℃)-40℃~1000℃±(1.5%+5)
Frequency (Hz)10Hz~10MHz±(0.1%+4)
Features
Display count6000
Auto range
Jaw opening28mm
True RMS
NCV
Live wire test
Continuity test
Diode
MAX/MIN
Relative mode
Zero mode
Data hold
Low battery indication
Auto power off
General Characteristics
Power1.5V battery (R03) x 2
Display37mm x 25mm
Product ColorRed and grey
Product net weight235g
Product size215mm x 63mm x 36mm

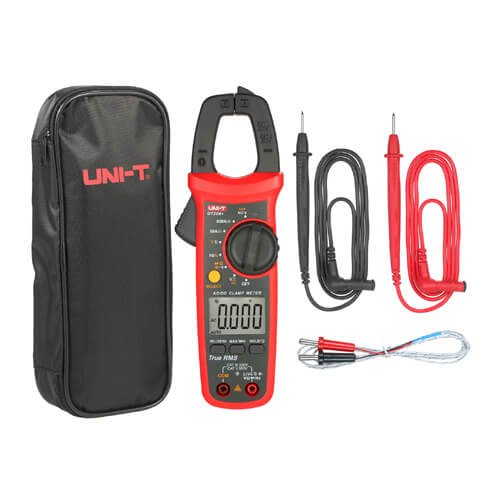

Standard accessoriesBatteries, test leads, Thermocouple
Standard individual packingGift box, carrying bag, English manual
Standard quantity per carton40pcs
Standard carton measurement485mm x 295mm x 385mm
Standard carton gross weight17.3kg

UNI T UT204+ Digital Clamp Meter AC DC 600A 3rd

UNI T UT204+ Digital Clamp Meter AC DC 600A 2nd

UNI T UT204+ Digital Clamp Meter AC DC 600A
