UNI-T UT203+ Digital Clamp Meter
Roll over image to zoom in
৳ 4,200.00
- Digital AC/DC Clamp Meter
- Model: UT203
- Brand: UNI-T
- Made in China
Automatic Range True RMS UT203+ Digital Clamp Meter 4000 Digits with LCD Display Clamp Meter Multimeter DC AC Capacitance RMS NCV Diode Test Tester for Electrical Measurement.
UNI-T UT203+ Digital Clamp Meter DC/AC 400A
- Industrial electricity
- Residential electricity
- Air conditioning
- Automobile
| Specifications | Range | UT203 |
| AC current (A) | 400A | ±(2.5% 5) |
| DC current (A) | 400A | ±(2.5% 5) |
| AC voltage (V) | 600V | ±(0.8% 5) |
| AC voltage frequency(Hz) | 10Hz~60kHz | ±(0.5% 2) |
| DC voltage (A) | 600V | ±(0.5% 2) |
| Resistance (Ω) | 40MΩ | ±(0.8% 2) |
| Capacitance (F) | 40mF | ±(4% 5) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1% 4) |
| Features | ||
| Display count | 4000 | |
| Auto range | √ | |
| Jaw opening | 28mm | |
| True RMS | √ | |
| NCV | √ | |
| Continuity test | √ | |
| Diode | √ | |
| MAX/MIN | √ | |
| Relative mode | √ | |
| Zero mode | √ | |
| Data hold | √ | |
| Low battery indication | √ | |
| Auto power off | √ | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 37mm x 25mm | |
| Product color | Red and grey | |
| Product net weight | 235g | |
| Product size | 215mm x 63mm x 36mm | |

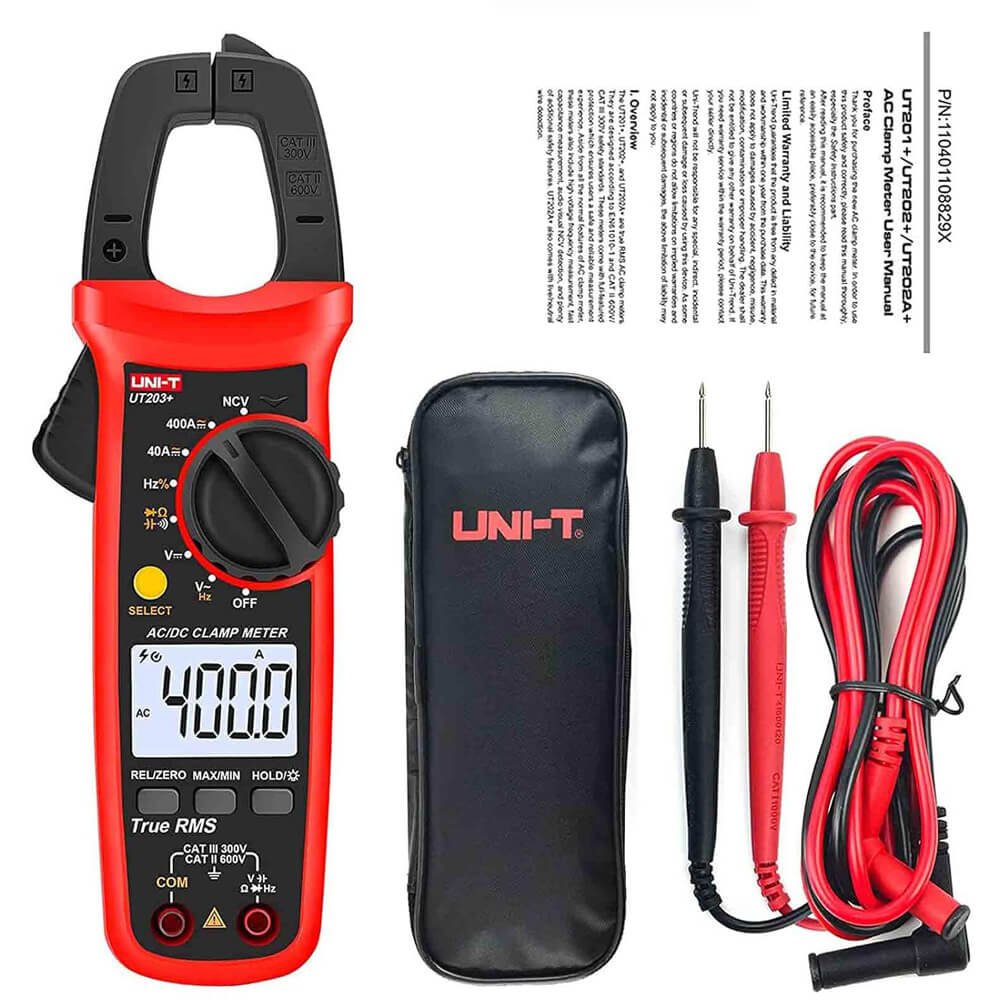

| Standard individual packing | Gift box, Carrying bag, English manual | |
| Standard quantity per carton | 40pcs | |
| Standard carton measurement | 485mm x 295mm x 385mm | |
| Standard carton gross weight | 16.8kg | |
