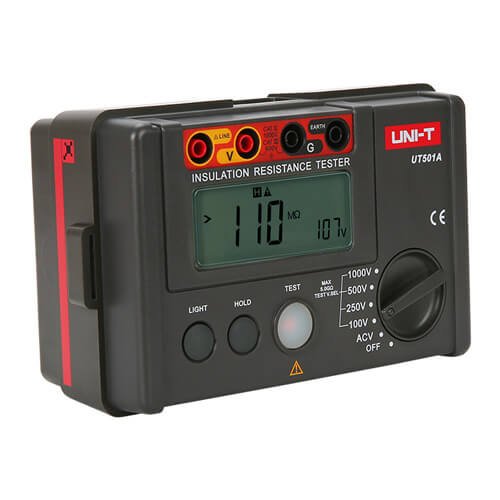

Uni-T Digital Megger Meter Insulation Tester UT501A

৳ 5,900.00

In stock

  • Digital Insulation Tester
  • Model: UT501A
  • Brand: UNI-T
  • Made in China

UT500 series insulation testers are used to measure the insulation resistance of electrical equipment and household appliances. This is done by measuring the insulation resistance between electrical circuits or between circuits and the ground. UT500 series can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index), and DAR (Dielectric Absorption). These are ideal tools for ensuring transformers, generators, high-voltage motors, capacitors, cables, arresters, and other electrical equipment can operate safely and accurately.

Models in UT500 series: UT501A, UT501B, UT502A

Uni-T Brand Digital Megger Meter Insulation Tester, Model: UT501A

  • Certifications: CE, UKCA
  • 2000-count LCD, overload indication, backlight
  • AC voltage measurement, auto power off
  • Auto discharge
  • Continuous low resistance measurement
  • Continuous measurements mode, red warning light, and buzzer function
  • PI and DAR measurement, auto resistivity calculation
  • Low resistance returning to zero function to improve accuracy



Specifications of UT501A Insulation Resistance Testers

SpecificationsRangeUT501AUT501BUT502A
Insulation resistance (Ω)Test voltages100V/250V/500V/1000V0%~10%
250V/500V/1000V0%~10%
500V/1000V/2500V0%~10%
100V0MΩ~100MΩ±(3% 5)
250V0MΩ~99.9MΩ±(3% 5)±(3% 5)
100MΩ~5GΩ±(5% 5)±(5% 5)
500V0MΩ~99.9MΩ±(3% 5)±(3% 5)±(3% 5)
100MΩ~5GΩ±(5% 5)±(5% 5)±(5% 5)
1000V0MΩ~99.9MΩ±(3% 5)±(3% 5)±(3% 5)
100MΩ~5GΩ±(5% 5)±(5% 5)±(5% 5)
2500V0MΩ~99.9MΩ±(3% 5)
100MΩ~9.9GΩ±(5% 5)
10GΩ~20GΩ±(10% 5)
Load current50V (R=50kΩ) 1mA0%~10%0%~10%0%~10%
100V (R=100kΩ) 1mA0%~10%0%~10%0%~10%
250V (R=250kΩ) 1mA0%~10%0%~10%0%~10%
500V (R=500kΩ) 1mA0%~10%0%~10%0%~10%
1000V (R=1MΩ) 1mA0%~10%0%~10%0%~10%
2500V (R=1MΩ) 1mA0%~10%
Short-circuit current<2mA<2mA<2mA
Low resistance (Ω)0.01Ω~200Ω (about 5.0V/>200mA)±(2% 3)±(2% 3)
AC voltage (V)30V~750V±(2% 3)
30V~600V±(2% 3)±(2% 3)
