Ultrasonic Thickness Gauge AS840 Smart Sensor
Roll over image to zoom in
৳ 12,000.00
- Ultrasonic Thickness Gauge
- Model: AS840
- Brand: Smart Sensor
- Made in China

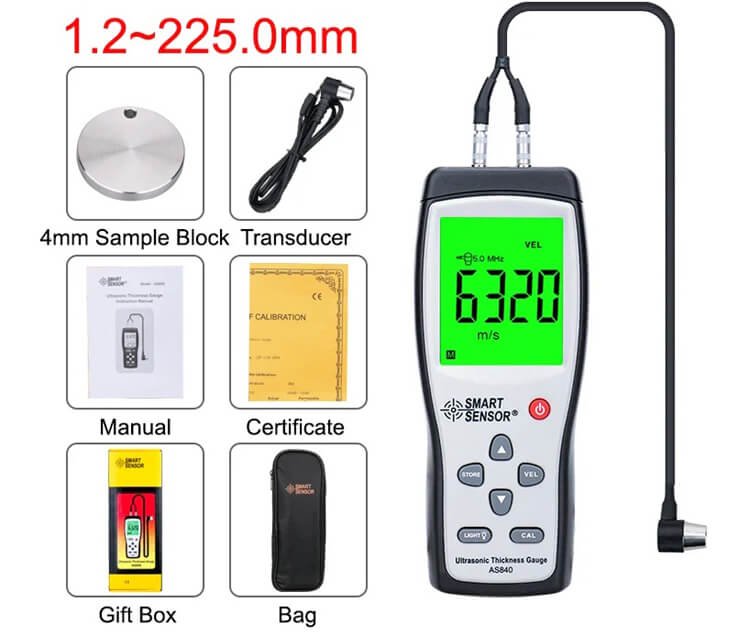

Smart Sensor Ultrasonic Thickness Gauge AS840
Features
The usage of an ultrasonic thickness gauge for non-destructive testing to check material properties such as thickness measurement is now regularly utilized in all areas of industrial measurements. The ability to gauge thickness measurement without requiring access to both sides of the test piece offers this technology a multitude of possible applications.
SPECIFICATIONS
|
Measuring Range |
1.2~225 |
|
Accuracy |
±(1%H 0.1)mm |
|
Resolution |
0.1mm |
|
Sound Velocity Range |
1000~9999m/s |
|
Frequency |
5MHz |
|
Operation Temperature |
0°C~40°C |
|
Minimum limit for tube measuring |
Ф20*3mm(steel) |
|
Auto Zero Calibration |
√ |
|
Auto linear compensation |
√ |
|
Coupling Indicator |
√ |
|
Metric / Imperial Switchable |
— |
|
Battery Indication |
√ |
|
Auto Power Off: |
√ |
