Motor Speed Controller ESC 30A for Brushless Motor

Drive your brushless motors with precision using this 30A Electronic Motor Speed Controller (ESC). Designed for reliability and ease of use, this module is the standard choice for powering small-to-medium RC aircraft, including quadcopters, fixed-wing planes, and helicopters.

It features a built-in BEC (Battery Eliminator Circuit), which regulates your high-voltage battery down to 5V to power your receiver and servos, eliminating the need for a separate battery pack. Compatible with 2S to 3S LiPo batteries, this ESC is widely used with popular brushless motors like the A2212 (1000KV/1400KV/2200KV) series.

Key Features & Benefits

• Safety Arming Feature: The motor will not start immediately when the battery is connected, preventing accidental injury. The throttle stick must be in the bottom position to arm.

• Built-in BEC (Linear): Provides a stable 5V / 2A output to power your receiver, flight controller, and servos directly from the main flight battery.

• Multiple Protection Features:

  • Low Voltage Cutoff: Prevents over-discharging your LiPo battery.

  • Over-Heat Protection: Reduces power if the ESC gets too hot.

  • Throttle Signal Loss Protection: Shuts down the motor if the radio signal is lost.

• Smooth Control: Offers linear and smooth throttle response, making it ideal for both beginners and experienced pilots.

• High Burst Current: Capable of handling burst currents up to 40A for 10 seconds, providing extra punch during take-offs or maneuvers.

Technical Specifications

Wiring & Pinout Guide

This ESC has three distinct sets of wires. Correct wiring is crucial to avoid damage.

1. Power Input (Thick Red & Black Wires):

   • Red: Connect to Battery Positive (+).

   • Black: Connect to Battery Negative (-).

   • Note: Ensure you solder a compatible connector (e.g., XT60 or Deans) matching your battery.

2. Motor Output (3x Blue Wires):

   • Connect these three wires to the three wires of your brushless motor.

   • Tip: The order does not matter initially. If the motor spins in the wrong direction, simply swap any two of these three wires.

3. Control Signal (3-Pin Servo Connector):

   • White/Orange: Signal (PWM from Receiver/Microcontroller).

   • Red: 5V Output (Powers the receiver).

   • Black/Brown: Ground.

How ESC 30A Motor Speed Controller Works

Unlike brushed motors, brushless motors require a 3-phase AC signal to rotate.

1. The ESC takes DC power from your LiPo battery.

2. It reads the throttle signal (PWM) from your receiver or Arduino.

3. It rapidly switches the power to the three blue wires in a specific sequence, creating a rotating magnetic field that drives the motor. The speed of this switching determines the motor’s RPM.

Package Contents

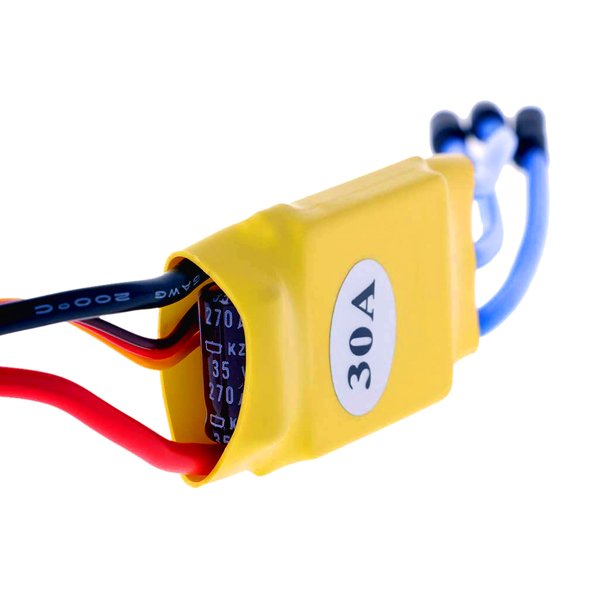

• 1x 30A Brushless ESC (Yellow Heatshrink Edition)
